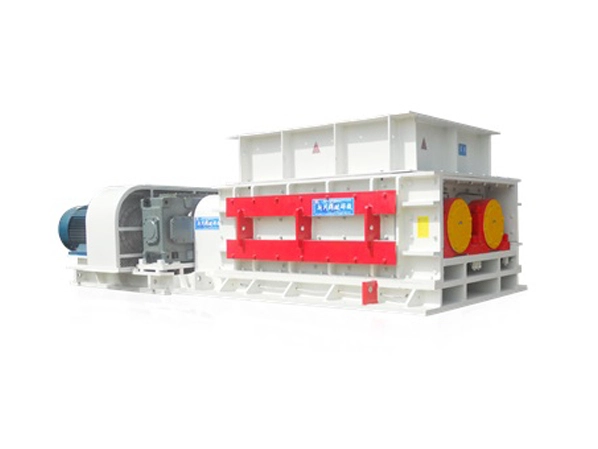

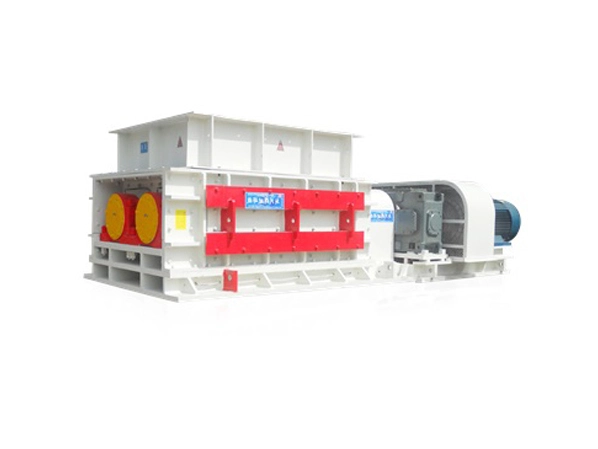

BENO Fine Sizer is usually used in the third stage of crushing to process materials from less than 50-150mm to less than 30mm. This advanced sizer equipment is one of the most ideal choices for soft rock crushing, functioning as an efficient fine crusher in mineral processing operations. The gears of BENO Fine Sizer are finer and denser than those of the coarse sizer and medium sizer, but it does not affect the use at all.

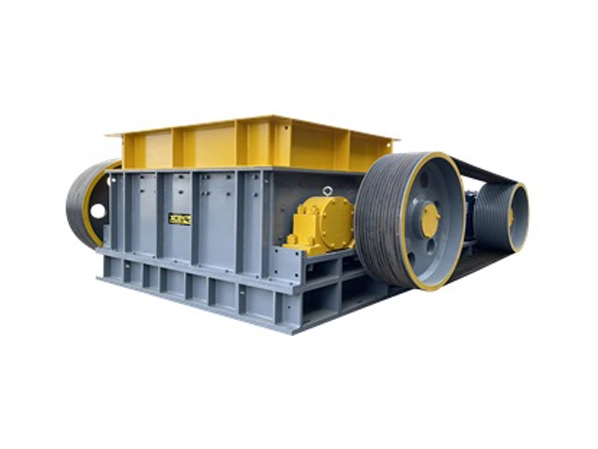

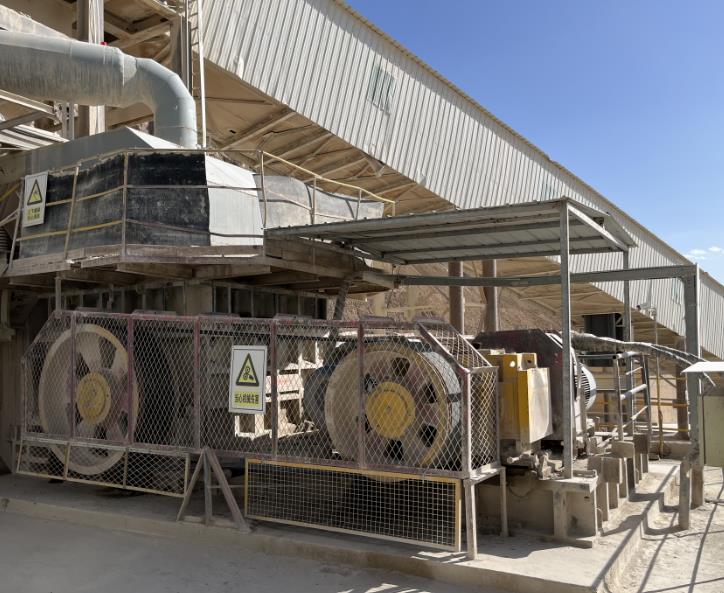

Low flour extraction rate. BENO Fine Sizer produces a uniform particle size distribution with very little dust or fines, offering performance advantages similar to a quality double roll crusher for sale in fine crushing applications.
Low power consumption. BENO Fine Sizer is designed to operate at very low speeds, which means it requires much less power than other types of high-speed crushers.
Easy to maintain. BENO Fine Sizer features a simple yet robust structural design, which means it requires little maintenance over its lifetime, comparable to the reliability expected from a premium smooth double roll crusher.
Specification | Roller diameter （mm） | Roller length（mm） | Maximum feed side length (mm） | Size of discharge （mm） | Production capacity（t/h） | Motor Power（kw） | Soft link weight（t） | Direct link weight（t） |
XCMD500 | 500 | 1000 | ≤50 | ≤10-25 | 20-50 | 15*2 | 9.5 | 8.2 |
1500 | 30-60 | 18.5*2 | 11.8 | 10.5 | ||||
2000 | 40-70 | 22*2 | 14.5 | 12.8 | ||||
2500 | 50-80 | 30*2 | 18 | 16.3 | ||||
XCMD650 | 650 | 1000 | ≤60 | ≤10-25 | 30-80 | 45*2 | 12.3 | 10.5 |
1500 | 50-100 | 55*2 | 18.5 | 16 | ||||
2000 | 60-160 | 75*2 | 23 | 21 | ||||
2500 | 75-220 | 90*2 | 28 | 25 | ||||
XCMD750 | 750 | 1000 | ≤70 | ≤10-30 | 50-150 | 55*2 | 23 | 21 |
1500 | 80-180 | 75*2 | 26.5 | 24.5 | ||||
2000 | 100-200 | 90*2 | 30 | 27.2 | ||||
2500 | 120-250 | 110*2 | 33.8 | 30.8 | ||||
XCMD850 | 850 | 1000 | ≤75 | ≤10-30 | 100-220 | 75*2 | 26 | 23.5 |
1500 | 200-400 | 90*2 | 31.5 | 28.5 | ||||
2000 | 300-500 | 110*2 | 36 | 33 | ||||
2500 | 350-650 | 132*2 | 39 | 36 | ||||
XCMD1000 | 1000 | 1000 | ≤100 | ≤10-30 | 250-450 | 90*2 | 46.8 | 41 |
1500 | 350-550 | 110*2 | 52 | 46.2 | ||||
2000 | 500-700 | 132*2 | 58 | 52.5 | ||||
2500 | 650-800 | 160*2 | 65 | 60 | ||||
XCMD1200 | 1200 | 1500 | ≤120 | ≤10-30 | 350-900 | 160*2 | 81 | 73 |
2000 | 450-1000 | 185*2 | 93 | 85 | ||||
2500 | 600-1200 | 220*2 | 106 | 98 | ||||
XCMD1500 | 1500 | 1500 | ≤150 | ≤10-30 | 750-1200 | 220*2 | 102 | 94 |
2000 | 850-1500 | 285*2 | 116 | 108 | ||||
2500 | 1000-2000 | 355*2 | 132.5 | 125 | ||||
☆XCMD1800 | 1800 | 2000 | ≤150 | ≤10-30 | 1500-2500 | 385*2 | 155 | 135 |
2500 | 2500-4000 | 450*2 | 175 | 155 | ||||
3000 | 3500-6500 | 625*2 | 208 | 188 |
