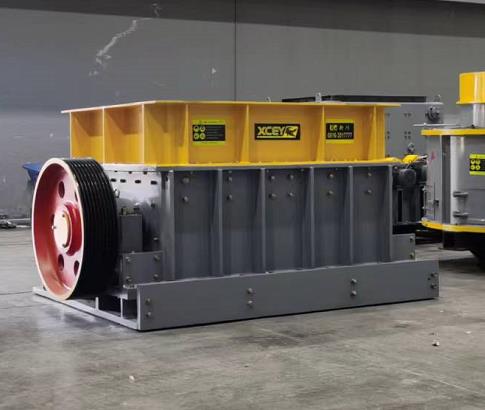

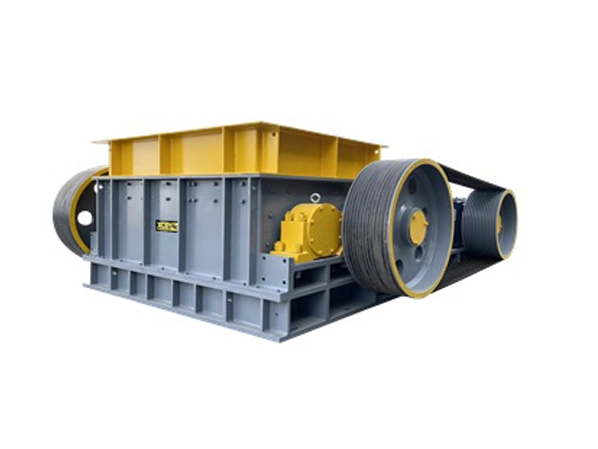

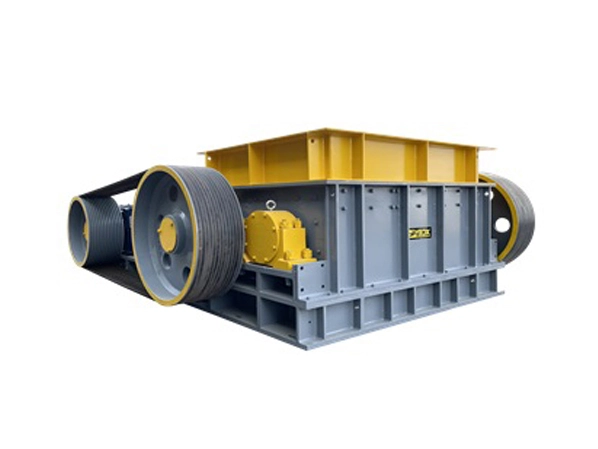

As a primary crushing equipment, BENO Coarse Sizer is mainly used in the crushing production of limestone, rock, coal and other non-metallic minerals. This crushing equipment requires that the compressive strength of the material does not exceed 125-175MPa, and the feed size is controlled below 1000mm for subsequent use, making it an ideal coarse crusher for demanding applications. With its robust design and reliable performance, this sizer equipment ensures consistent output and minimal downtime in high-volume operations.
The crushing capacity is large and the yield rate can reach at least 60%.
It has a shaping effect on the crushed materials, and the discharged materials have a spherical shape, which is helpful for subsequent calcination, which is helpful for subsequent calcination and feeding into a fine crusher for further size reduction.
Uniform discharge, low powder rate, high efficiency and low energy consumption.
The tooth shape can be customized, similar to options available with any double roll crusher for sale from leading manufacturers.
The crushing roller has the characteristics of high strength and high wear resistance, which reduces equipment use and maintenance costs, much like the robust design of a smooth double roll crusher.
The transmission mode is divided into soft connection and direct connection.
Specification | Roller diameter（mm） | Roller length（mm） | Maximum feed side length （mm） | Size of discharge（mm） | Production capacity （t/h） | Motor power （kw） | Soft link weight（t） | Direct link weight（t） |
XCMD500 | 500 | 1000 | ≤350 | ≤100-200 | 75-150 | 37*2 | 11.5 | 10.2 |
1500 | 100-250 | 45*2 | 13.8 | 12.5 | ||||
2000 | 150-350 | 90*2 | 16.5 | 14.8 | ||||
2500 | 200-500 | 110*2 | 20 | 18.3 | ||||
XCMD650 | 650 | 1000 | ≤500 | ≤100-300 | 150-350 | 45*2 | 14.3 | 12.5 |
1500 | 200-450 | 55*2 | 20.5 | 18 | ||||
2000 | 250-550 | 75*2 | 25 | 23 | ||||
2500 | 300-650 | 90*2 | 31 | 27 | ||||
XCMD750 | 750 | 1000 | ≤600 | ≤100-300 | 150-350 | 45*2 | 25 | 23 |
1500 | 200-450 | 55*2 | 28.5 | 26.5 | ||||
2000 | 250-550 | 75*2 | 32 | 29.2 | ||||
2500 | 300-650 | 90*2 | 35.8 | 32.8 | ||||
XCMD850 | 850 | 1000 | ≤680 | ≤100-300 | 300-650 | 75*2 | 29 | 26.5 |
1500 | 400-1000 | 90*2 | 34.5 | 31.5 | ||||
2000 | 450-1200 | 110*2 | 39 | 36 | ||||
2500 | 500-1500 | 132*2 | 42 | 39 | ||||
XCMD1000 | 1000 | 1000 | ≤800 | ≤100-300 | 400-750 | 90*2 | 49.8 | 44 |
1500 | 500-1200 | 110*2 | 55 | 49.2 | ||||
2000 | 550-1500 | 132*2 | 61 | 55.5 | ||||
2500 | 650-1800 | 160*2 | 68 | 63 | ||||
XCMD1200 | 1200 | 1500 | ≤960 | ≤100-400 | 700-1500 | 160*2 | 84 | 76 |
2000 | 800-1800 | 185*2 | 96 | 88 | ||||
2500 | 1000-2500 | 220*2 | 109 | 101 | ||||
XCMD1500 | 1500 | 1500 | ≤1200 | ≤100-400 | 1000-2000 | 220*2 | 105 | 97 |
2000 | 1500-2500 | 285*2 | 119 | 111 | ||||
2500 | 2000-3000 | 355*2 | 135.5 | 128 | ||||
☆XCMD1800 | 1800 | 2000 | ≤1440 | ≤100-400 | 3000-5000 | 450*2 | 138 | 128 |
2500 | 5000-8000 | 520*2 | 168 | 158 | ||||
3500 | 8000-10000 | 600*2 | 233 | 221 |
