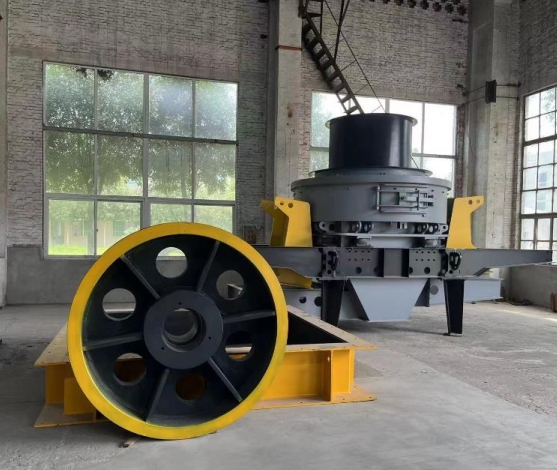

In today's progressive crushing technology, BENO leads the industry with its XCVS-5X1145 vertical shaft impact Crusher (vsi crusher). With its superior performance and reliability, this equipment is ideal for the quarrying, construction and metallurgical industries.
【 Technical parameters, excellent performance 】
The main technical parameters of XCVS-5X1145 crusher are as follows:
Model | XCVS-5X1145 |
Production capacity | 150-220 tons/hour |
Soft material feed size | 50mm |
Hard material feed size | 45mm |
Speed | 1100-1310 RPM |
Power | 220 kW *2 |
Size | 5100*2790*3320 mm |
Weight | 27,600 kg |
With its efficient production capacity and excellent material handling capacity, this crusher can meet the crushing needs of different hardness materials, whether soft or hard materials, it can easily cope with.
【 Working principle, high efficiency and energy saving 】
The BENO XCVS-5X1145 vertical shaft impact crusher accelerates the material by centrifugal force, causing it to break by striking between the impact wheel and the fixed anvil iron or between the impact wheel and each other. This working principle not only improves the crushing efficiency, but also reduces the energy consumption and realizes high efficiency and energy saving.
【 Obvious advantages, strong competitiveness 】
Compared to conventional crushers, the BENO XCVS-5X1145 vertical shaft impact crusher offers the following advantages:
Higher productivity and efficiency
Lower operating costs
Better particle shape and size distribution
Improved product granularity control
Low machine wear
These advantages make the XCVS-5X1145 ideal for increasing productivity and reducing costs.
【 Selection considerations 】
When choosing the BENO XCVS-5X1145 vertical shaft impact crusher, the following factors need to be considered:
Maximum feed size and capacity
Desired product shape and particle size distribution
Maintenance and repair needs
Energy consumption and efficiency
Spare parts cost and availability
【 Related products, one-stop service 】
BENO offers a range of vertical shaft impact crushers, including the XCVS-5X8522 and XCVS-5X1280, as well as single cylinder hydraulic cone crushers, multi-cylinder hydraulic cone crushers, etc., to meet your one-stop crushing needs.
【 Contact us for more information 】
To learn more about the BENO XCVS-5X1145 vertical shaft impact Crusher, or to obtain a custom solution, please visit our official website BENO, or contact our sales team directly. BENO, work with you to shape a better future.
